Flanges are essential components in piping and mechanical systems, playing a crucial role in connecting different sections of pipes, valves, pumps, and other equipment. These mechanical fittings allow for a secure, leak-proof connection, enabling the safe transfer of fluids and gases in many industries. Whether you are involved in manufacturing, plumbing, or energy production, understanding flanges and their types, uses, and benefits is vital for ensuring the efficiency and safety of your systems.
In this article, we’ll take a deep dive into what flanges are, the different types of flanges, their applications, and the importance of choosing the right flange for your projects.
What Are Flanges?

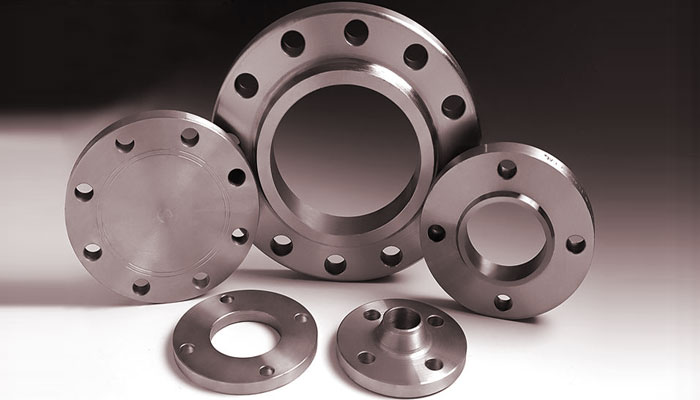

A flange is a mechanical component used to connect two pipes, or a pipe to a valve, pump, or other pieces of equipment. It is essentially a circular disc with holes that allow bolts to connect it to another flange or equipment. When two flanges are joined together, a gasket or sealing element is often placed between them to ensure a leak-proof connection.
Flanges can be made from a variety of materials, including steel, stainless steel, cast iron, bronze, and even plastic. The choice of material depends on the specific requirements of the application, such as the type of fluid or gas being transferred, the operating temperature, and the pressure conditions.
Types of Flanges
Flanges come in several different types, each suited to specific needs in different industries. Understanding the different types of flanges helps ensure that you select the right one for your project, guaranteeing safety, reliability, and performance.
1. Weld Neck Flange
Weld neck flanges are one of the most commonly used types of flanges in high-pressure applications. This flange has a long neck that allows for the flanged pipe to be welded to the flange for a strong, reliable connection.
- Key Features: The long neck design minimizes stress concentration and enhances the strength of the pipe connection.
- Applications: Used in applications that involve high pressure, such as in oil and gas, petrochemical, and power generation industries.
2. Slip-On Flange
A slip-on flange is a type of flange that slides over the pipe, making it easy to install and cost-effective. The flange is welded both inside and outside to the pipe to ensure a secure connection.
- Key Features: Relatively easy to install, more economical than weld neck flanges.
- Applications: Commonly used in low-pressure applications and where ease of installation is a priority.
3. Blind Flange
A blind flange is used to seal the end of a piping system, effectively blocking off the flow. It is a solid disc with bolt holes but no central hole to allow fluid or gas to pass through.
- Key Features: Used for sealing the ends of pipelines and providing future access.
- Applications: Widely used in testing, maintenance, and inspection processes or when the line is temporarily closed.
4. Threaded Flange
A threaded flange features internal threads that allow it to be screwed onto the pipe. This makes it ideal for applications where welding may not be feasible or desired.
- Key Features: No welding required, simpler installation, good for low-pressure systems.
- Applications: Often used in systems with smaller pipe diameters or where welding would be difficult or unsafe.
5. Socket Weld Flange
Socket weld flanges are used in high-pressure and small diameter piping systems. The pipe is inserted into the socket of the flange, and then it is welded around the pipe, creating a solid connection.
- Key Features: Strong and reliable connection, used for high-pressure applications.
- Applications: Common in industrial systems that require high-strength joints, like in the chemical and oil industries.
6. Lap Joint Flange
A lap joint flange consists of two parts: a backing flange and a loose lap joint flange. The backing flange is welded to the pipe, and the lap joint flange fits over the backing flange. This allows for easy alignment and disassembly.
- Key Features: Provides flexibility and ease of maintenance, excellent for systems that need to be frequently accessed or serviced.
- Applications: Typically used in systems where components are subject to frequent disassembly and maintenance, like in the food and beverage industry.
7. Orifice Flange
Orifice flanges are specially designed flanges used in applications where measuring the flow rate of liquids or gases is required. These flanges feature a specific design to accommodate orifice plates and differential pressure flow meters.
- Key Features: Designed with holes to house orifice plates for flow measurement.
- Applications: Used in the oil and gas, chemical, and water treatment industries for flow measurement and control.
8. Expander Flange
An expander flange is used to connect two pipes of different sizes. It is designed to allow for a gradual expansion of the flow as the pipe size increases.
- Key Features: It provides a smooth transition from a smaller pipe to a larger one, reducing pressure drop and turbulence.
- Applications: Common in systems where different pipe sizes are required, such as in water supply and wastewater management.
Materials Used in Flanges
The choice of material for a flange is critical in determining its strength, durability, and resistance to corrosion. Some of the most common materials used in flange manufacturing include:
- Carbon Steel: Strong, durable, and cost-effective, carbon steel flanges are suitable for most general-purpose applications.
- Stainless Steel: Known for its corrosion resistance, stainless steel flanges are ideal for harsh environments, including high temperatures, chemicals, and marine applications.
- Alloy Steel: Used for high-strength applications that require additional resistance to high temperatures and pressure.
- Cast Iron: Cast iron flanges are cost-effective but generally not recommended for high-pressure applications.
- Plastic: Flanges made from plastic are typically used in piping systems that carry corrosive liquids, such as in the chemical industry.
Applications of Flanges
Flanges are widely used in many industries, thanks to their versatility and ability to provide leak-proof connections. Some of the most common applications include:
1. Oil and Gas Industry
Flanges are used to connect pipelines, valves, pumps, and other equipment in oil and gas operations. The flanges must withstand high pressures and temperatures, making materials like stainless steel or alloy steel ideal for these applications.
2. Chemical Processing
In chemical plants, flanges are used to connect pipes and tanks carrying chemicals and solvents. The materials used for flanges in this industry need to resist corrosion and the effects of various chemicals, which is why stainless steel and specialized alloys are commonly used.
3. Water Treatment
In water treatment facilities, flanges are essential for connecting pipes, filters, and other equipment. Here, corrosion resistance and long-term durability are key, making stainless steel and plastic flanges popular choices.
4. Power Generation
Flanges are crucial in power plants, where they are used to connect pipes carrying steam, water, and fuel. The extreme temperatures and pressures in these systems require flanges that are made from materials capable of withstanding such harsh conditions.
5. Food and Beverage Industry
In food processing and beverage production, flanges ensure a tight seal in pipes that carry food-grade liquids. The materials used in these flanges need to be food-safe and resistant to corrosion, so stainless steel and plastic flanges are commonly used.
Importance of Choosing the Right Flange
Choosing the correct flange is critical for ensuring the safety, efficiency, and longevity of a piping system. When selecting a flange, it’s essential to consider several factors:
- Pressure and Temperature: Different flanges are designed to withstand specific pressure and temperature conditions. It’s vital to choose a flange that can handle the requirements of your system.
- Material Compatibility: The flange material must be compatible with the fluid or gas passing through the system to prevent corrosion or degradation.
- Ease of Installation and Maintenance: Some flanges, such as lap joint flanges, are easier to install and maintain, while others require more time and effort.
- Cost: While certain flanges may be more expensive upfront, investing in high-quality flanges can save money in the long run by reducing the risk of leaks, maintenance costs, and equipment failure.
Conclusion
Flanges play a crucial role in connecting and securing various components in piping systems across multiple industries. Understanding the different types of flanges, their materials, and their applications will help you choose the right flange for your specific needs. Whether you’re in the oil and gas, chemical, or food processing industry, selecting the proper flange ensures safety, efficiency, and longevity for your piping systems.
By making informed decisions about flange selection, small business owners and engineers can improve their systems’ performance and reduce downtime and maintenance costs, making flanges an essential part of any successful industrial operation.
